Big Tent Solution 15M
Range
Solution Tents

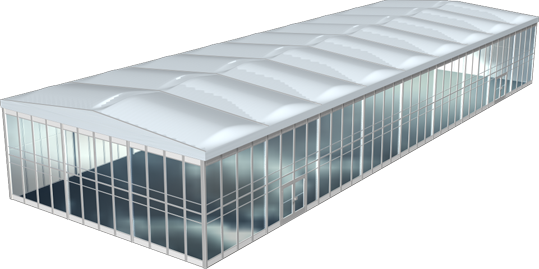

Tent image
Technical data
| Clear-span width | 1500 cm |
| Side height | 400 cm, 600 cm |
| Ridge height | 469 cm, 648 cm |
| Roof pitch |
5° |
| Bay distance | 500 cm |
| Gable uprights | 3 gable uprights (per end) |
| Longest component | 1055 cm |
| Minimum tent length | 2000 cm |
| Maximum tent length | No limit |
| Main profile | 250 mm x 120 mm x 5/4 mm |
| Eave / corner connection | Clevic-plate connection, Clevic-plate connection with corner strut |
| Max. allowed wind speed to DIN | 100 km/h |
| Wind Load | 0.5 kN/m2 |
| Extension / lean-to options | none |
| Flooring options | Woodenfloor with timber and steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards |
| Cover | R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2, inflated textile iso-roof |

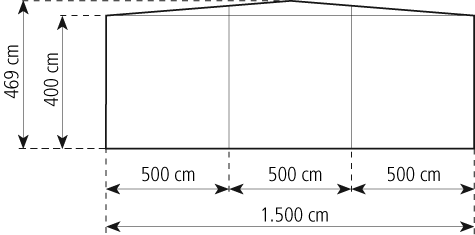

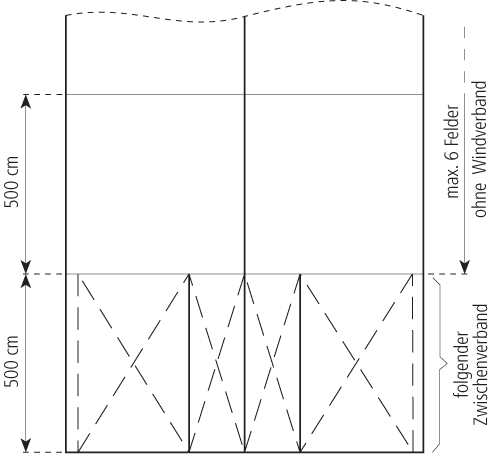

Tent top and side view image
